CHECKS AND MAINTENANCE

HEADLIGHT

Keep the headlight glass clean at all times

(page 57).

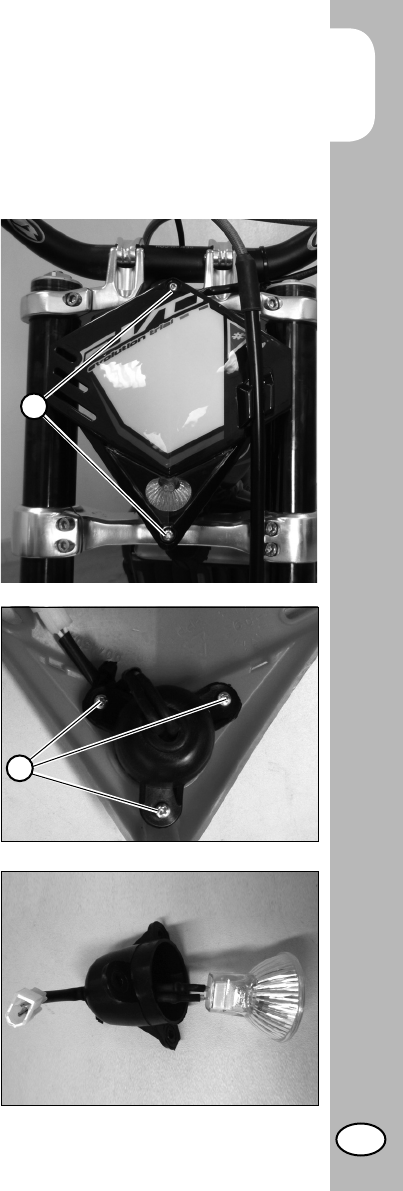

REPLACING THE HEADLIGHT

BULBS

Dismantle the headlight mask removing

the two retaining screws 1 indicated in

the ﬁ gure.

Remove the screws 2 indicated in the

ﬁ gure.

Take out the bulb assembly from the bulb

holder.

Remove the bulb from the connectors and

carry out replacement.

To reassemble, proceed inversely as de-

scribed above.
